As a new feature I
decided to add a project products page. Items of interest that are, or will be
used during the construction of the C3 Lathe Project. Interesting tools
or services may appear on this page as well.
All Steel Gears
Daniel Kautz, owner & operator of "The Hobbyist Machine
Store" sources
and offers for sale complete sets of all steel gears for both the
7X lathes and Mini Mills. Some individual and smaller packages
are available.
These sets include not only the head stockgears, both driven and drive gears, but a COMPLETE
set of steel change gears includi the tumbler
pinions!
TEDEX forum members get these sets (for a limited time) at a 10% discount.
YOU can enjoy all steel gears
at the TEDEX members discount rate by mentioning that you saw
them on the Kahale & Martin AP Machine Project Lathe Web Site. Tell him Marty sent
you!
Discount applies
to complete sets
ONLY!
Bison 3 Jaw Chuck and Back
Plate
8/27/2007
Maybe I should
redefine "coming soon". Sorry for the delay. This 4" Bison chuck was purchased
from New England Brass. Bob Cumings is very easy to work
with and quick with the delivery. Took three days. Cheaper than most of
the other supply houses. I think Enco was about $10 cheaper but I couldn't get a
"live person" to talk to there who knew anything. Glad I talked to Bob
as the description on ALL the other sites was WRONG. No two piece jaws.
But I did get a set of soft jaws and some chuck grease :)

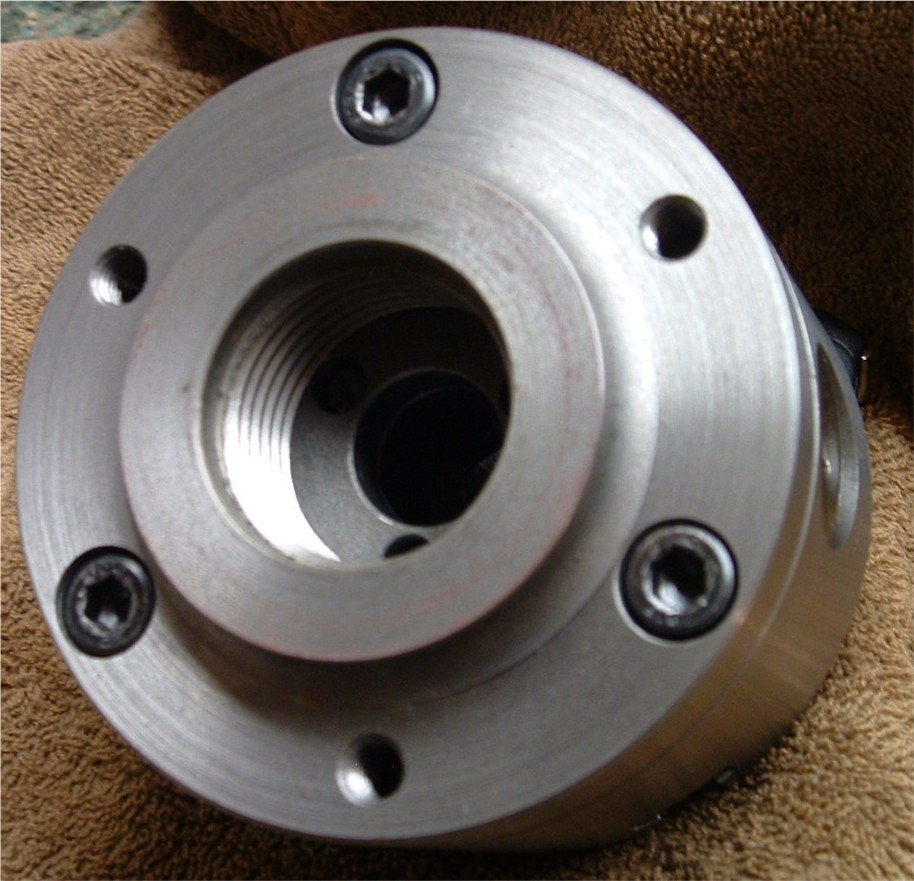

Yep, it's a
mounted 1-1/2 x 8 TPI thread back. I had to shorten it about a half inch to
duplicate the Southbend 10K spindle dimensions I have emulated and I
dusted the back for a future dividing plate which will mount via the
jack bolt holes.
